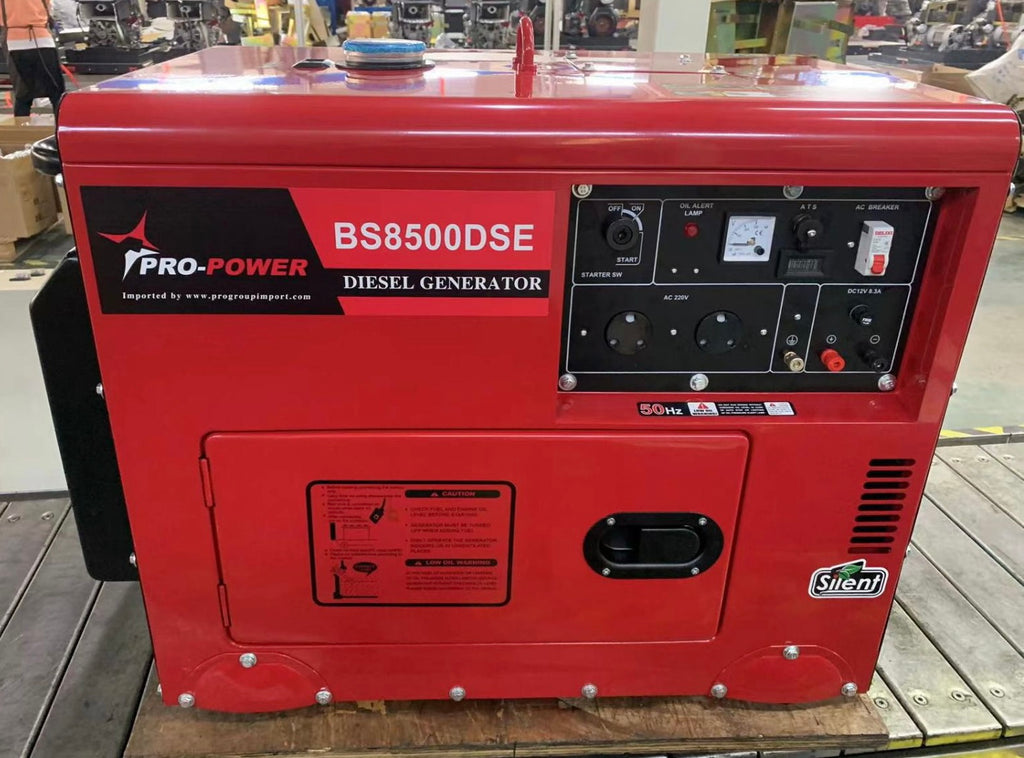

8Kva/6.5kw Diesel Silent Type- Single Phase Generator

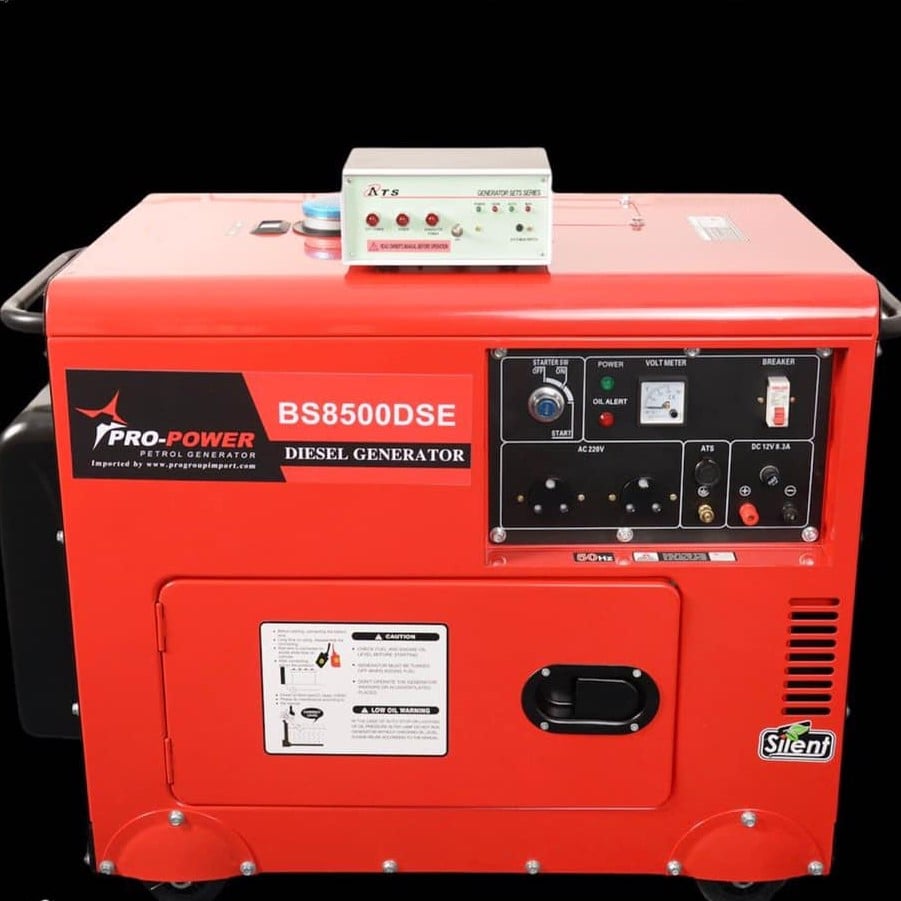

ATS Panel Unit and Interface
Diesel Generator | ||
Generator Model | BS8500DSE | |
Rated Power | 6kw/8kva | |
Max. Power | 6.5kw | |
Rated voltage | 220v | |
Phase | single phase | |
Power Factor cos | 1 | |
Rated frequency | 50hz | |
Excitation Transistorized | self-excitation brush with AVR | |
DC output | 12V / 8.3A | |
Fuel Tank Capacity(L) | 16 | |
Engine Model | diesel 190 | |
Engine Type | air-cooled,1-cylinder | |
Starting system | electric start | |
Displacement (ml) | 499 | |
Compression ratio | 19.5:01 | |
Rated power (KW) | 7.6 | |
Rated Rotation Speed(rpm) | 3000 | |
Fuel type | diesel | |
Lube type | SAE10W30(CD grade above) | |
Running time(hr) | 8 | |
Noise (7m) dB(A) | 72 | |
Packing size(general type) | 950*600*800(mm) | |
G.W.(general type) | 165 (Kg) |
